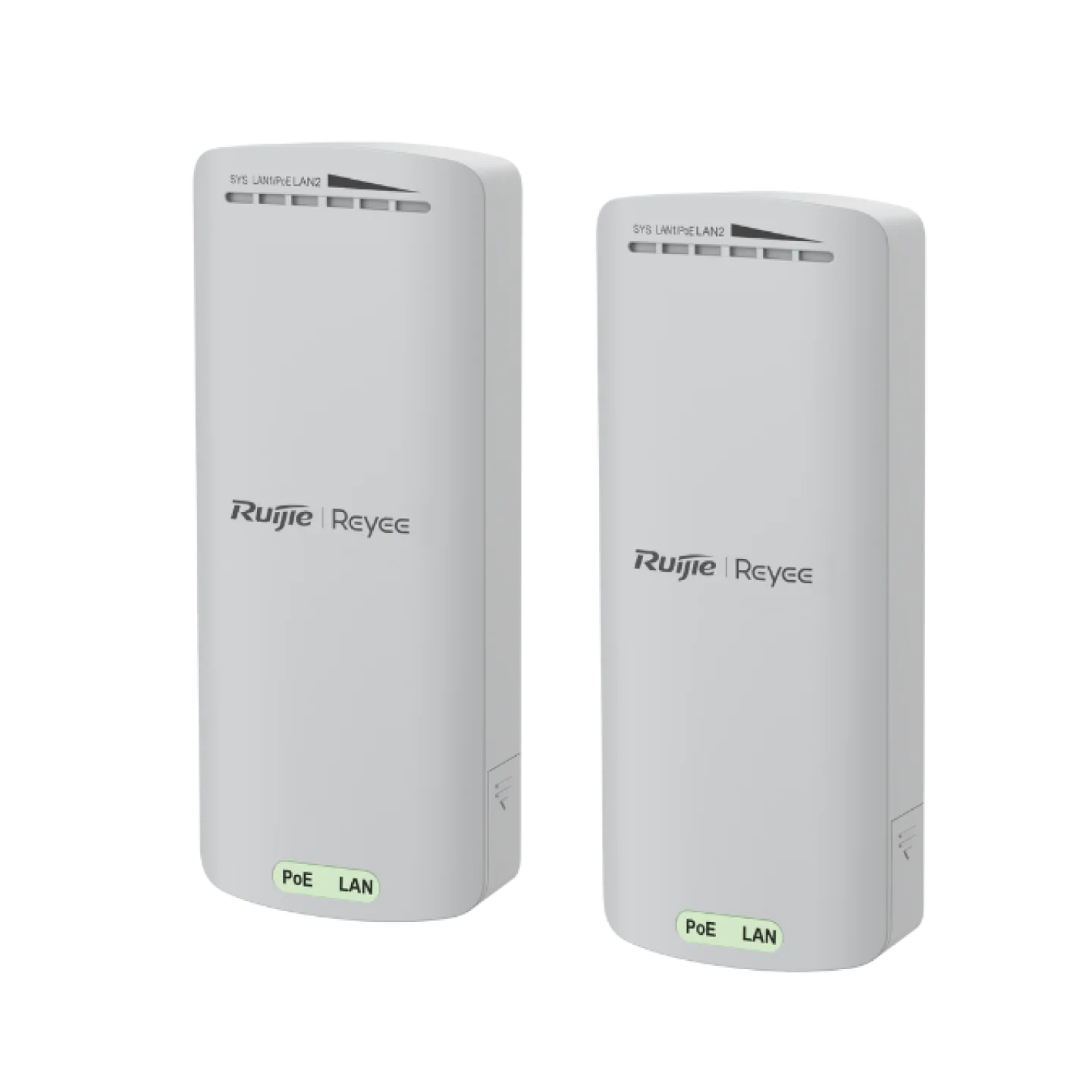

Ruijie 2.4GHz Pre-paired kit Wireless Bridge, 500m | RG-EST100E
Product Description
Highlight Features
- RG-EST100-E can easily transmit data from 500m away in real time
- Factory-free configuration, without complex alignment
- IP55 Weatherproof, -30℃~60℃ guarantee stable operating at outdoor or elevator environment
- Support maximum 10 * 3MP cameras loading at 100m, 5 * 3MP cameras loading at 500m
- Visually Intuitive statistics monitoring on Ruijie cloud, easy maintenance at remotely
Applications
| Product Model | Bridging Performance | RSSI (dBm) | Throughput & Camera Limits | |||
| 3 MP | 4 to 5 MP | 6 to 7 MP | 7 to 8 MP | |||
| RG-EST100-E | 60 Mbps/100 m (328.08 ft.) (HT20) 30 Mbps/500 m (0.31 miles) (HT20) |
–58 dBm/100 m (328.08 ft.) –68 dBm/500 m (0.31 miles) |
10/100 m (328.08 ft.) 5/500 m (0.31 miles) |
6/100 m (328.08 ft.) 3/500 m (0.31 miles) |
3/100 m (328.08 ft.) 1/500 m (0.31 miles) |
3/100 m (328.08 ft.) 1/500 m (0.31 miles) |
Specifications
Hardware Specifications
Wi-Fi Radio
Radio design
- Single-radio
2 spatial streams
● Radio 1: 2.4 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width
- Auto/20/40 MHz
Antenna
Antenna horizontal orientation
- 70°
Antenna vertical orientation
- 70°
Dimensions and Weight
Product dimensions (W x D x H)
- 68.7 mm x 42 mm x 165.5 mm (2.70 in. x 1.65 in. x 6.52 in.)
Power Supply and Consumption
Number of PoE In ports
- 1
Environment and Reliability
Operating temperature
- –30°C to +60°C (–22ºF to +140ºF)
Operating humidity
- 5% RH to 95% RH (non-condensing)
MTBF
- 400,000 hours (about 45 years)
IP rating
- IP55
Software Specifications
WLAN
Bridge speed test
- Yes
Network Management and Monitoring
SON
- Yes
AI heatmap
- No
Restarting devices through Ruijie Reyee App
- Yes
SNMPv1, v2c, and v3
- No
$31.93
Original: $91.23
-65%Ruijie 2.4GHz Pre-paired kit Wireless Bridge, 500m | RG-EST100E—
$91.23
$31.93Product Information
